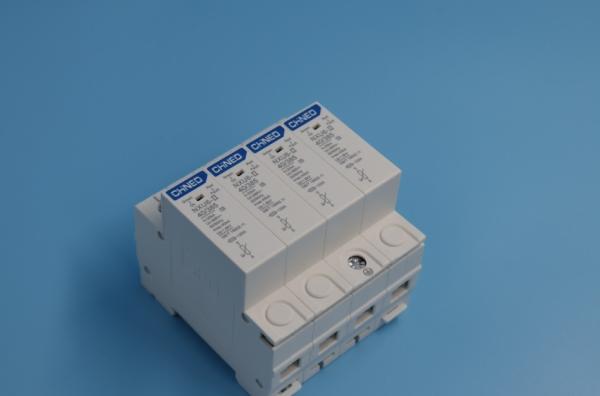

T2 Class C Lightning Arrester Energy Good Quality Surge Protective Device 4P
Product Description
Surge protection device to prevent lightning surge voltage in low-voltage electrical system or solar energy system (photovoltaic power supply system). These devices must be installed in parallel on the low-voltage distribution system or DC power supply system to be protected, and provide common and different modes of protection. Its installation location is recommended to be located at the front end of the household side of the distribution system or at both ends of the DC power line (solar panel side and inverter/converter side), and equipped with matching circuit breakers or fuses
Product Features
1.T2, T1+T2 surge protection devices are available for photovoltaic/low-voltage power system.
2. Module design, easy installation, and replaceable.
3. The color of the visible window indicates the running status, green indicates normal, and red indicates abnormal.
4. No leakage, no working current.
5. Remote signal or intelligent monitoring module (optional).
Product Parameters
| Test standards |
EN/IEC61643-11(Type 2 /Class 2/T2/Class C) |
| Maximum operating voltage(Ac)Uc |
150V |
280V |
320V |
385V |
420V |
NPE:255V |
| Nominal discharge current(8/20us)In |
30kA |
| Maximum discharge current (8/20us)Imax |
50kA |
| Total lighting current(8/20us)L1/N→PE Itoal |
200kA |
| Voltage Protection Level Up |
≤0.8kV |
≤1.0kV |
≤1.2kV |
≤1.45kV |
≤1.6kV |
≤1.5kV |
| Response time ta |
<25ns |
| Degree of protection |
IP20 |
| Range of operating temperatures |
-40ºC~+80ºC |
| Failure indication |
Green:normal Red:invalid |
| Approvals,certification |
TUV/CB/CE/IEC/ROHS |
| Pole |
1P/2P/3P/4P/1P+N/3P+N |
| Remote signal interface connection capability |
Available |
| Protection Class |
IP20 |
FAQ:
Q: How about the terms of payment?
A: Generally through L/C, D/A, D/P, T/T and so on.
Q: Do you accept customized service?
A: We offer OEM/ODM service, can print your logo on product. our professional technical and quotation team can provide a satisfied project according to your drawing and parameters.
Q:How to guarantee the quality of your products?
A:All goods are from original factory, and we provide Original factory warranty for all goods from us.
Q:How long would your equipment be used?
A:Generally,more than 10 years.
