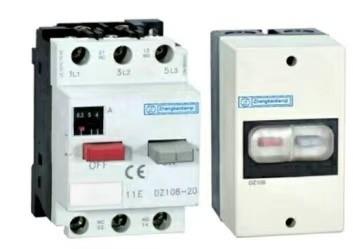

DZ108(3VE) Series Plastic Outer Covering Type Circuit Breaker 3 Phase Motor Protection
Product Description:
DZ108(3VE) the series plastic outer covering type circuit breaker, uses the German advanced low pressure circuit breaker technology. Conforms to GB1497-85, GD998-82, IEC157-1, IEC 292-1, VDE0660, standard and so onGB1404.8-14048, Imitates German SIEMENS the company 3VE series circuit breaker, is domestic DZ5-20, DZ5-50, the DZ15-60 circuit breaker update product. This circuit breaker is suitable for the alternating voltage to 660 volts,the frequency is 40 to 60 hertz, the nominal current 0.1 to 63 peaceful electric circuits in to the AC3 load under the electric motor, the distribution line or other electrical equipments, the implementation not frequent passes, breaks the operation, and carries on the overload, short-circuits the Protection.
Product Specifcaitions:
| Type |
Rated current
(A) |
The fixed current
range of hot time-
delayed release(A) |
Choices of auxiliary contacts(A) |
Order No.
Article No. |
Choices of
auxiliary
contacts |
DZ108-20
(3VE1) |
0.16 |
0.1-0.16 |
1.9 |
-2BU00 |
1005
without
auxiliary
contacts |
| 0.25 |
0.16-0.25 |
3 |
-2CU00 |
| 0.4 |
0.25-0.4 |
4.8 |
-2DU00 |
| 0.63 |
0.4-0.63 |
7.5 |
-2EU00 |
| 1 |
0.63-1 |
12 |
-2FU00 |
1015
1NO+1NC |
| 1.6 |
1-1.6 |
19.2 |
-2GU00 |
| 2.5 |
1.6-2.5 |
30 |
-2HU00 |
| 3.2 |
2-3.2 |
38 |
-8HU00 |
| 4 |
2.5-4 |
48 |
2JU00 |
1025
2NO |
| 5 |
3.2-5 |
60 |
-8JU00 |
| 6.3 |
4-6.3 |
75 |
-2KU00 |
| 8 |
5-8 |
96 |
-8KU00 |
| 10 |
6.3-10 |
120 |
-2LU00 |
1035
2NC |
| 12 |
8-12.5 |
150 |
-8LU00 |
| 16 |
10-16 |
192 |
-2MU00 |
| 20 |
14-20 |
210 |
-2NU00 |
DZ108-32
(3VE3) |
1.6 |
1-1.6 |
19 |
3VE3000-2GA00 |
Special Order |
| 2.5 |
1.6-2.5 |
30 |
-2HA00 |
| 4 |
2.5-4 |
48 |
-2JA00 |
| 6.3 |
4-6.3 |
75 |
-2KA00 |
| 10 |
6.3-10 |
120 |
-3VE3000-2LA00 |
| 12.5 |
8-12.5 |
150 |
-8LA00 |
| 16 |
10-16 |
192 |
-2MA00 |
| 20 |
12.5-20 |
240 |
3VE3000-8MA00 |
| 25 |
16-26 |
300 |
-2NA00 |
| 32 |
22-32 |
380 |
-2PA00 |
DZ108-63
DZ308-63
(3VE4,
3VF1) |
10 |
6.3-10 |
120 |
3VE4200-0CL00 |
Special Order |
| 16 |
10-16 |
192 |
-0CM00 |
| 25 |
16-25 |
300 |
-0CP00 |
| 32 |
22-32 |
380 |
-0CQ00 |
| 40 |
28-40 |
4980 |
-0CR00 |
| 50 |
36-50 |
600 |
-0CS00 |
| 63 |
45-63 |
700 |
-0CT00 |
